Precision Metrology: A Deep Dive into TOMITA Ferrite Technical Specifications

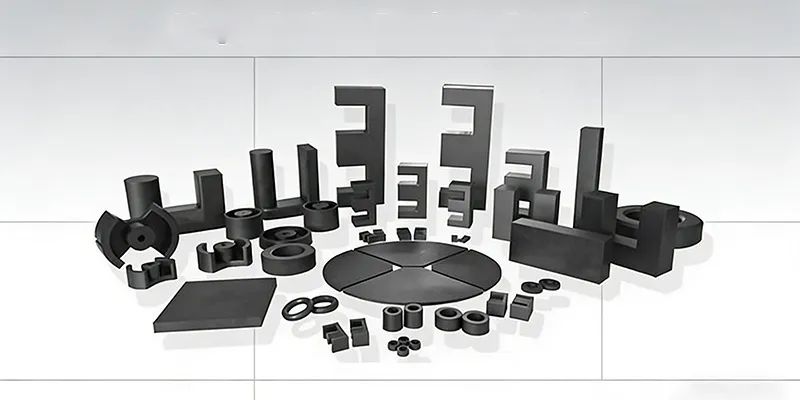

In the intricate labyrinth of magnetic component research and development, a datasheet serves as far more than a mere product identifier; it is the fundamental cornerstone upon which high-fidelity circuit simulations are constructed. Within its 2024 technical compendium, TOMITA unveils the staggering stability and prowess of its materials through a granular exposition of physical parameters. To truly harness the potential of TOMITA’s portfolio, one must first decode the sophisticated metrics that define magnetic excellence.

1. Initial Permeability (μ iac): The Yardstick of Sensitivity

Initial permeability characterizes a material’s innate ability to conduct magnetic flux under the influence of an infinitesimal magnetic field strength. It is the primary gauge of a substrate's magnetic receptivity.

Comparative Analysis: In the TOMITA catalog, a stark dichotomy exists between grades; the 2H5 material boasts a μ iac of $3700$ , whereas the high-frequency 6D8 variant is specified at a modest $450$ .
Architectural Implications: A superior μ iac empowers engineers to achieve formidable inductance ( $L$ values) with a significantly reduced number of coil windings. This reduction is a prerequisite for radical miniaturization.
Standardization: TOMITA executes these measurements on toroidal cores in strict accordance with the JIS-C2561 protocol. This ensures that the empirical data is not only accurate but globally interoperable within the industry.

2. Relative Loss Factor ( $tan \delta / \mu_{iac}$ ): The Sentinel of Efficiency

Core loss is the clandestine culprit behind thermal dissipation in electronic assemblies. The loss factor serves as an inverse proxy for efficiency; the lower the coefficient, the more adept the material is at preserving energy during high-frequency oscillations.

In signal processing architectures, a diminished loss factor ensures minimal signal attenuation, maintaining the purity of data transmission. Conversely, in power electronics, it translates directly into enhanced conversion yields. TOMITA provides comprehensive Frequency Characteristics curves, allowing designers to visualize the trajectory of dissipation across varying spectral densities.

3. Saturation ( $Bs$ ), Remanence ( $Br$ ), and Coercivity ( $Hc$ )

The static magnetization curve is a roadmap of a material's capacity and resilience. Understanding these thresholds is vital for high-current environments.

Saturation Magnetic Flux Density ( $Bs$ ): This delineates the maximum magnetic flux a core can sustain. TOMITA’s Mn-Zn series (such as the 2G8) typically manifests a high $Bs$ of approximately $470 \text{ mT}$ . This ensures the component remains impervious to magnetic saturation during current surges, thereby preventing catastrophic circuit failure.
Coercive Force ( $Hc$ ): This metric defines the material's resistance to demagnetization. TOMITA’s documentation includes Static Magnetization Curves captured at specific thermal intervals (20°C, 60°C, 100°C). Such transparency is indispensable for automotive electronics where thermal fluctuations are both frequent and extreme.

4. Curie Temperature ( $Tc$ ): The Threshold of Magnetic Vitality

The Curie temperature marks the thermal Rubicon where a material transitions from a ferromagnetic state to a paramagnetic one, effectively losing its magnetic utility.

TOMITA’s engineering advantage is evident in its high-stability series, which frequently features a $Tc$ exceeding 200°C. This high ceiling ensures that in punishing industrial or automotive environments, the magnetic core maintains its structural integrity. It prevents the sudden, deleterious drop in inductance that often plagues inferior materials when they encounter localized heat pockets.

5. Deciphering TOMITA’s Empirical Context

Beneath the dense rows of the Material Characteristics table lie the critical environmental variables that govern the reported data. Precision requires context.

Excitation Frequency: Measurements are typically standardized at $100 \text{ kHz}$ or lower to establish a baseline.
Excitation Current: TOMITA utilizes a negligible AC current to ensure the material resides strictly within its linear magnetization region.
Thermal Baseline: Data is recorded at standard ambient temperatures unless otherwise specified.

Expert Insight: One must look beyond the static μ iac value. It is imperative to consult the μ iac vs. Temperature curves. While generic materials may exhibit superlative performance at room temperature, they often falter under thermal stress. In contrast, TOMITA’s premium grades are engineered to maintain an astonishingly flat response curve from $-40\text{°C}$ to $+120\text{°C}$ , ensuring reliability across the entire operational envelope.
