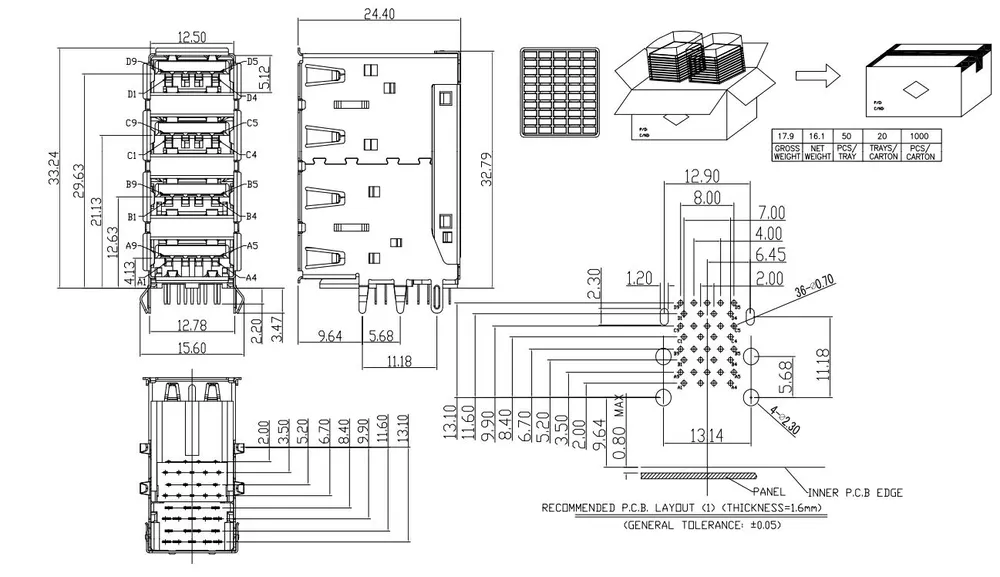

4-Port USB 3.0 Type-A Connector - C071070

4-Port USB 3.0 Type-A Connector - C071070

4-Port USB 3.0 Type-A Connector - C071070

Share

Quad-port USB 3.0 AF connector. 1.8A power delivery per port.

Rated current: 1.5A
Rated voltage: 30V DC
Contact impedance: 30m Ohm
Insulation impedance: 100m Ohm
Withstand voltage: 100V
Operating temperature: -55 Degree C~+85 Degree C
Rubber core: high temperature material, UL94-V0
Terminal: PHOSPHOR BRONZE, half gold tin plated
Casing: SUS, nickel plated

USB 2.0 Single-Layer 90 Degree Forked-Pin Connector - C071188

Side-Mount USB 2.0 90 Degree Bent-Pin Connector - C071171

usb connector types USB A connector usb charger types usb a to a connector usb 3.0 female connector

Product Details
Download

High-density hub with SUS shell. Supports simultaneous data/power transfer.
