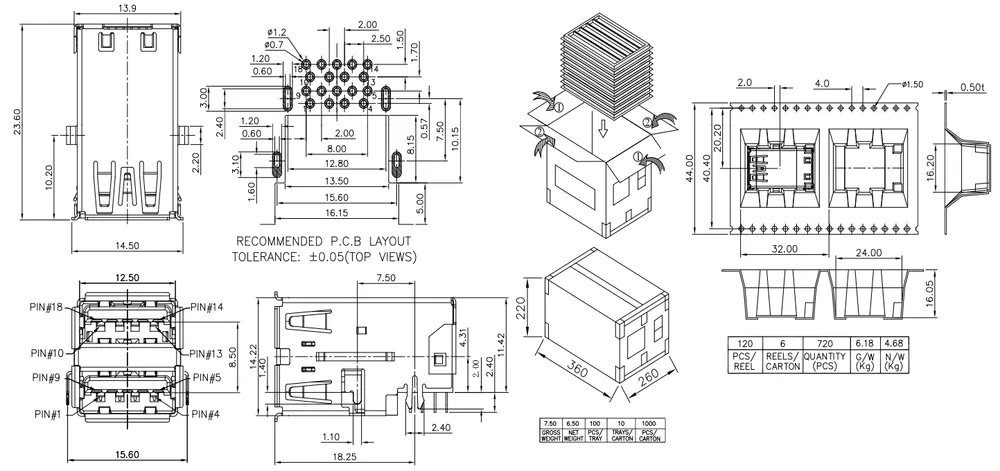

Deep-Mount USB 3.0 Double-Layer Connector - C071190
Deep-Mount USB 3.0 Double-Layer Connector - C071190

Deep-Mount USB 3.0 Double-Layer Connector - C071190

Share

4.31mm board-mount depth. Forward orientation, bent pins.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Board-Mount USB 3.0 Double-Layer 90 Degree Connector - C071141
usb connector typesUSB A connectorusb charger typesusb3 female
  • Product Details
  • Download

High-clearance connector for stacked PCB designs. 1.8A power delivery.
