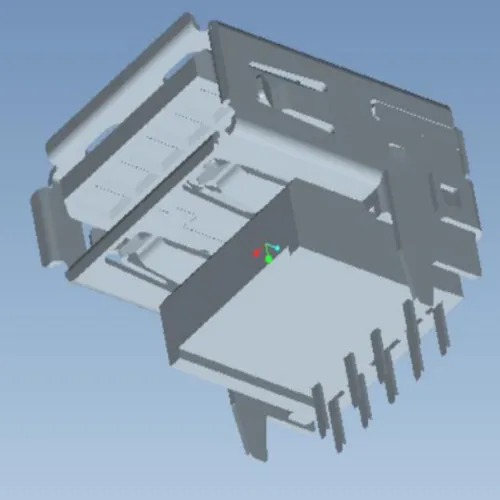

Raised USB 3.0 Single-Layer 90 Degree Connector - L000424
Raised USB 3.0 Single-Layer 90 Degree Connector - L000424
Raised USB 3.0 Single-Layer 90 Degree Connector - L000424

Raised USB 3.0 Single-Layer 90 Degree Connector - L000424

Share

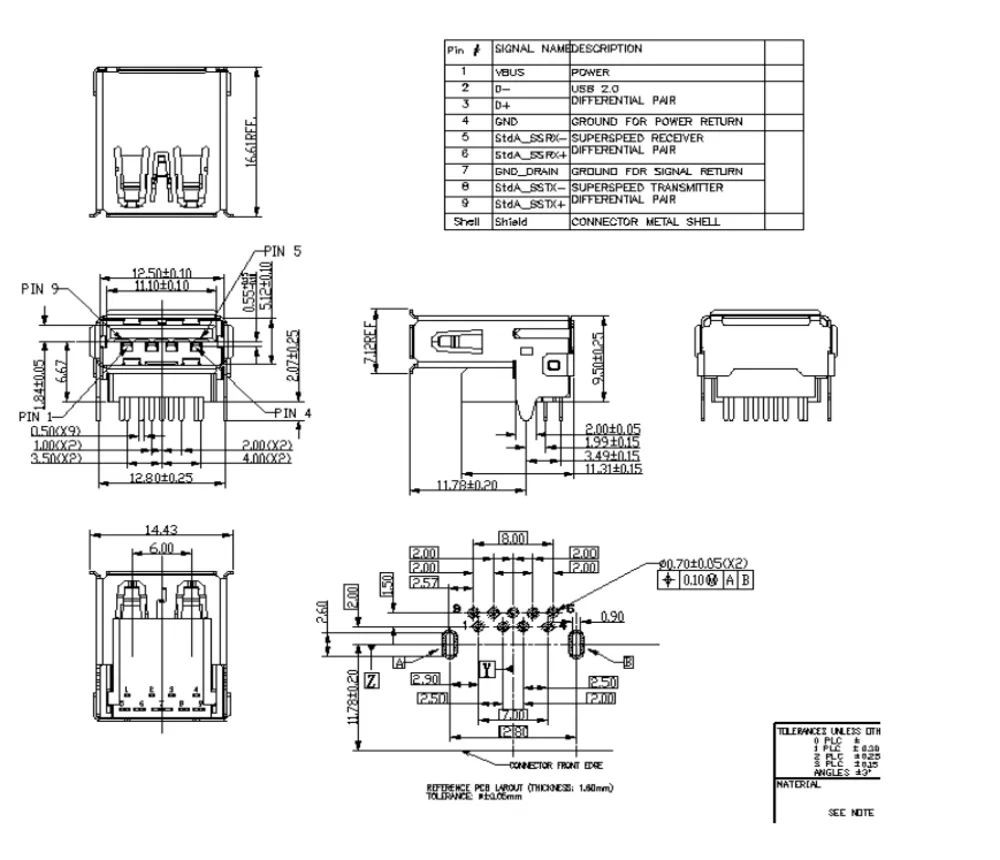

9.50mm raised base. Nickel-plated brass shell.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: Copper Alloy, half gold tin plated
  • Casing: Brass, nickel plated
[email protected]
Previous
SMT USB 3.0 Single-Layer 90 Degree Board-Mount Connector - L000776
usb connector typesUSB A connectorusb charger typesusb 3.0 female connectorusb 3 connector types
  • Product Details
  • Download

Elevated connector for thermal management. 1.8A power delivery.

Shenzhen Gaorunxin Technology Co., Ltd

Online message

Shenzhen Gaorunxin Technology Co., Ltd

Related Products

Reverse-Mount USB 2.0 Single-Layer 90 Degree Connector - C023552

Reverse-Mount USB 2.0 Single-Layer 90 Degree Connector - C023552

2.63mm board-mount height, reverse orientation. 30V DC, 100M?? insulation.

USB 2.0 Single-Layer 180 Degree Locking Connector - C040141

USB 2.0 Single-Layer 180 Degree Locking Connector - C040141

180 Degree locking design. Brass shell, 30V rating, -55 Degree C to 85 Degree C range.

Board-Mount USB 3.0 Single-Layer 90 Degree Reverse Connector - C071151

Board-Mount USB 3.0 Single-Layer 90 Degree Reverse Connector - C071151

0.36mm mount height, reverse orientation. U2/U3 contacts.

Board-Mount USB 3.1 Double-Layer 90 Degree Connector - C071307

Board-Mount USB 3.1 Double-Layer 90 Degree Connector - C071307

GEN2 protocol, 3.40mm height. Forward bent-pin design.

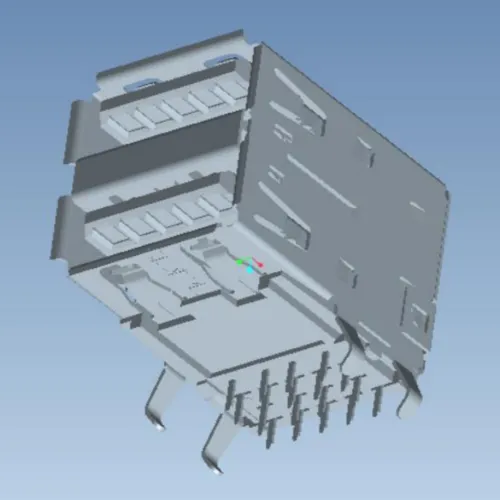

Extended USB 3.1 Double-Layer Rolled-Edge Connector - L000574

Extended USB 3.1 Double-Layer Rolled-Edge Connector - L000574

19.64mm length, rolled-edge + bent pins. Nickel-plated SUS.

10Gbps USB 3.1 Raised Double-Layer Connector - C071365

10Gbps USB 3.1 Raised Double-Layer Connector - C071365

Raised double-layer 10G design. 1.8A power delivery.

Forward USB 3.1 Side-Mount Forked-Pin Connector - L000546

Forward USB 3.1 Side-Mount Forked-Pin Connector - L000546

Unrolled-edge forward fork pins. SUS shell with nickel plating.

Board-Mount USB 2.0 Single-Layer 90 Degree Connector - C040212

Board-Mount USB 2.0 Single-Layer 90 Degree Connector - C040212

4.14mm height, reverse-mount design. No flange, brass shell.

USB 2.0 Double-Layer Board-Mount Connector - C071248

USB 2.0 Double-Layer Board-Mount Connector - C071248

Rolled-edge + forked pins. Support-free design.

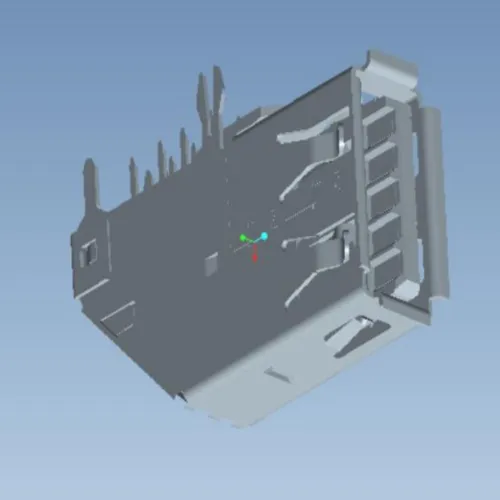

Forward USB 3.0 Side-Mount Forked-Pin Connector - C071329
