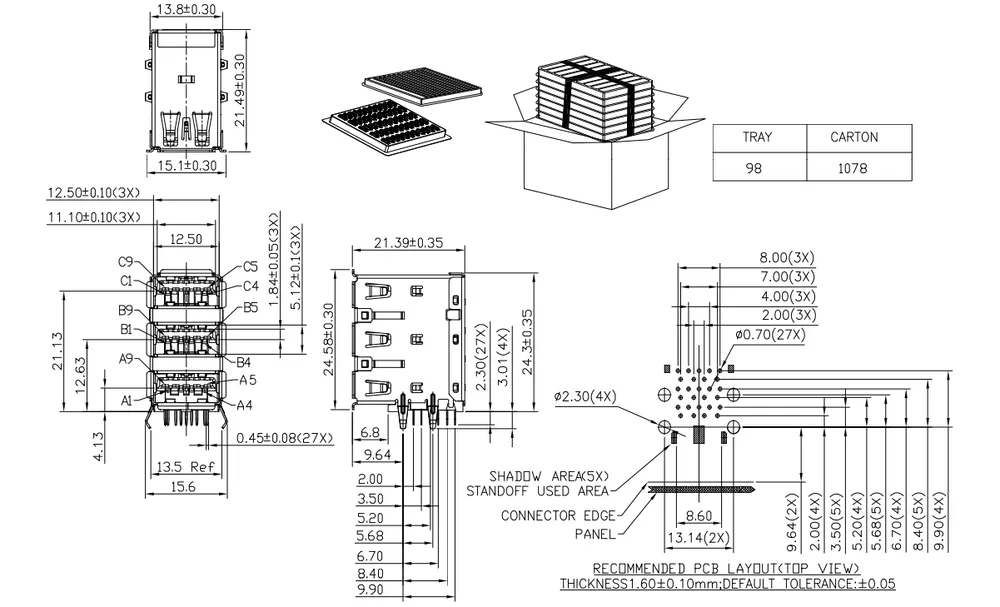

Triple-Port USB 3.0 Type-A Connector - C071174
Triple-Port USB 3.0 Type-A Connector - C071174

Triple-Port USB 3.0 Type-A Connector - C071174

Share

Three-port stacked design. Non-spring contacts, DIP termination.

  • Rated current: 1.5A
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Reverse USB 3.1 Board-Mount 90 Degree Connector - C071169
usb connector typesUSB A connectorusb charger typesusb3 female
  • Product Details
  • Download

High-efficiency hub connector with selective gold/tin plating. 30V DC rating.
