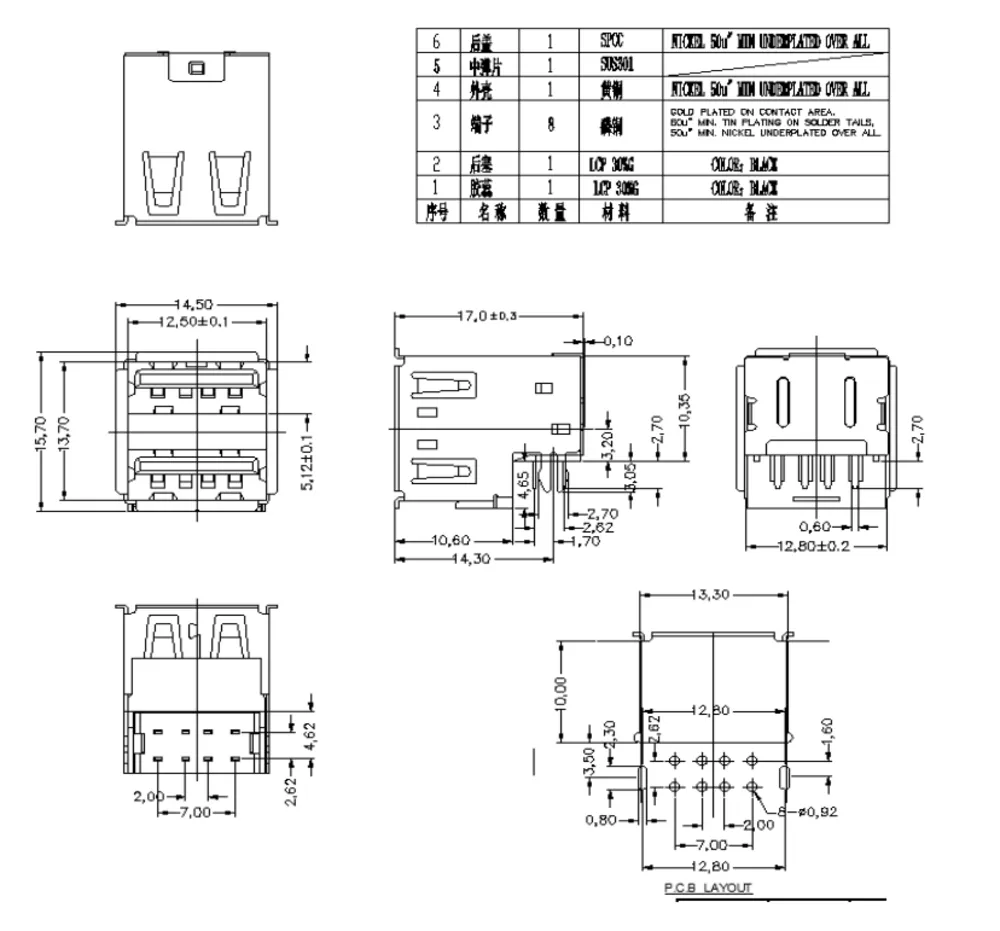

USB 2.0 Double-Layer Board-Mount Connector - C071248
USB 2.0 Double-Layer Board-Mount Connector - C071248

USB 2.0 Double-Layer Board-Mount Connector - C071248

Share
pRolled-edge + forked pins. Support-free design./p
  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Board-Mount USB 2.0 Double-Layer 90 Degree Connector - C071267
usb connector typesUSB A connectorusb charger typesusb 2 connector types
  • Product Details
  • Download

Compact connector with 30m ohm contact resistance. Space-constrained PCB applications.
