USB 2.0 Single-Layer 90 Degree Forward Connector - C023553
USB 2.0 Single-Layer 90 Degree Forward Connector - C023553

USB 2.0 Single-Layer 90 Degree Forward Connector - C023553

Share

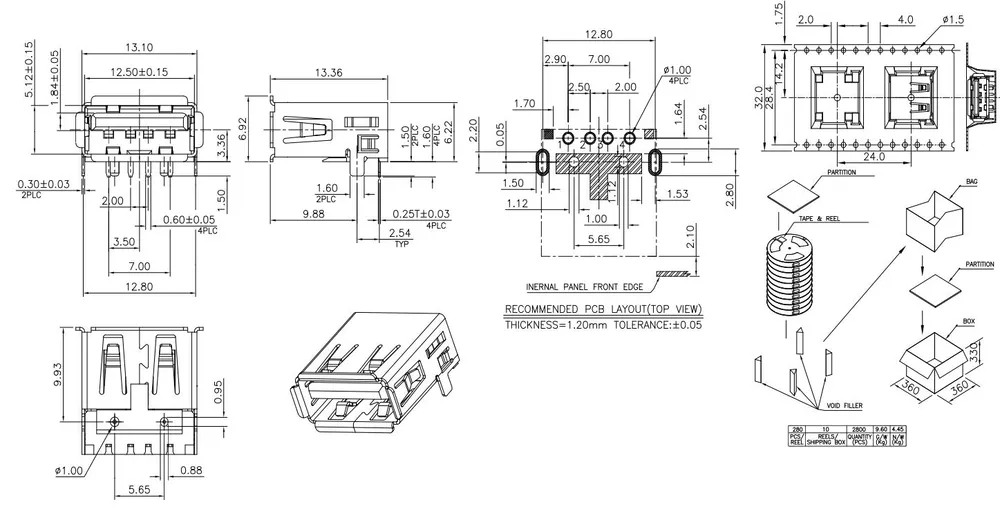

3.36mm height, straight-pin forward mount. 30m?? contact resistance.

  • Rated current: 1.5A
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SK7, nickel plated
[email protected]
Previous
Board-Mount USB 2.0 Single-Layer 90 Degree Connector - C040212
usb connector typesfemale connector usbUSB A connectorusb charger typesusb a to a connector
  • Product Details
  • Download

High-reliability connector with phosphor bronze contacts. Industrial temperature range.
