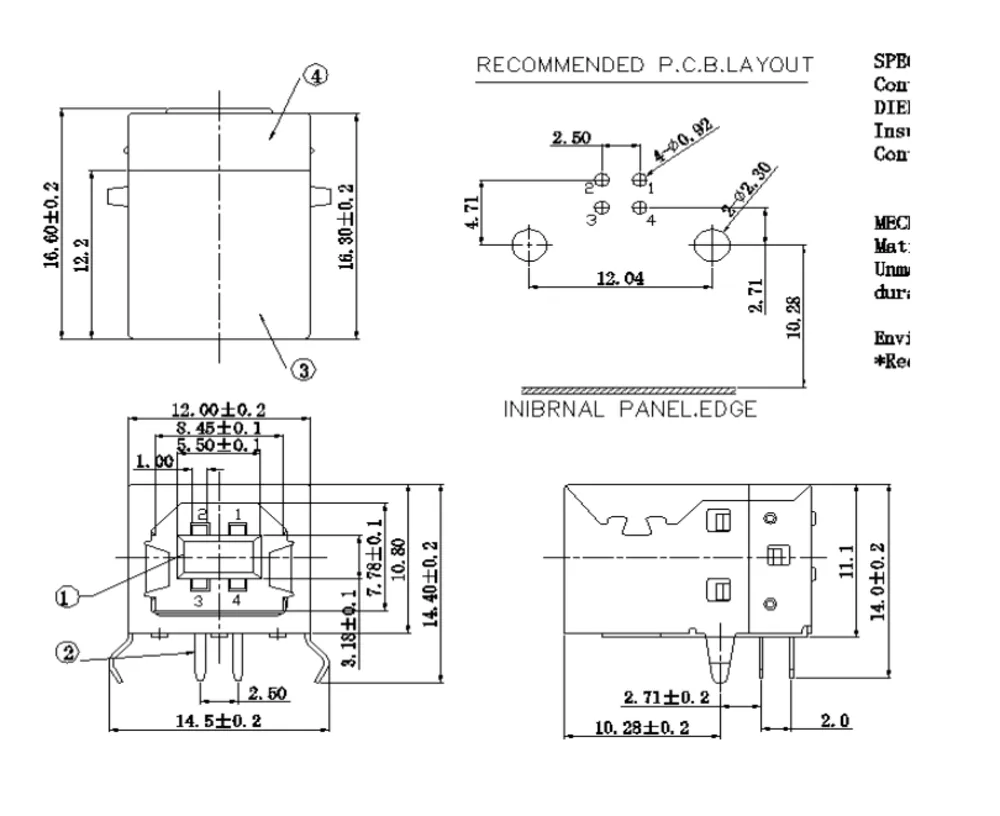

USB 2.0 Type-B 90 Degree Bent-Pin Female Connector - L000654
USB 2.0 Type-B 90 Degree Bent-Pin Female Connector - L000654

USB 2.0 Type-B 90 Degree Bent-Pin Female Connector - L000654

Share

Type-B female port. 90 Degree bent pins, PBT housing.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Board-Mount USB 3.1 Double-Layer 90 Degree Connector - C071307
usb connector typesUSB A connectorusb charger typesusb 2 connector types
  • Product Details
  • Download

Peripheral connector with copper alloy contacts. 30V DC/1.8A power rating.
