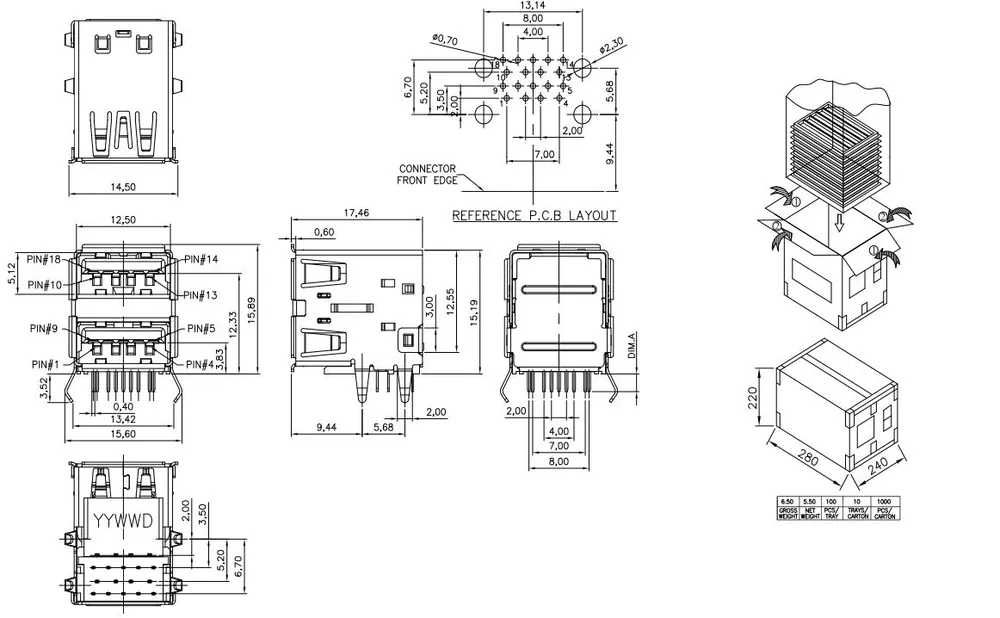

USB 3.0 Double-Layer 90 Degree Bent-Pin Connector - C023654
USB 3.0 Double-Layer 90 Degree Bent-Pin Connector - C023654

USB 3.0 Double-Layer 90 Degree Bent-Pin Connector - C023654

Share
pBent-pin termination. U2/U3 contacts with separate plating./p
  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
USB 3.0 Double-Layer 90 Degree Connector - C023069
usb connector typesUSB A connectorusb charger typesusb 3.0 female connectorusb a female
  • Product Details
  • Download

Durable connector with nickel-plated SUS shell. 1.8A power delivery capability.
