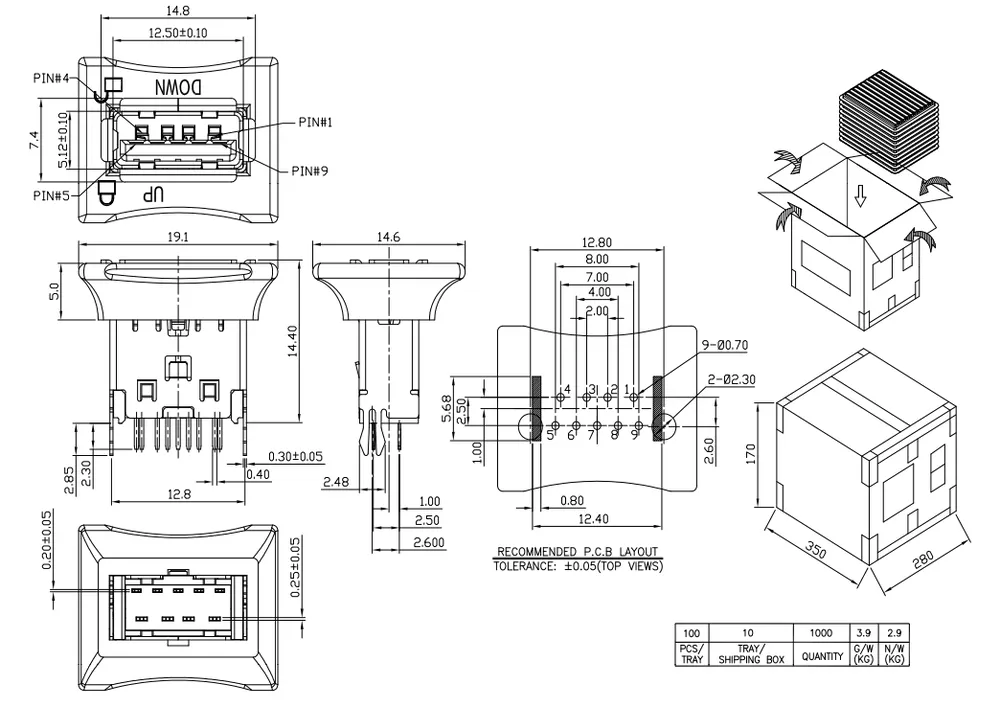

USB 3.0 Single-Layer 180 Degree Locking Connector - C071026
USB 3.0 Single-Layer 180 Degree Locking Connector - C071026

USB 3.0 Single-Layer 180 Degree Locking Connector - C071026

Share
p180 Degree locking mechanism. 1.8A power delivery, SUS shell./p
  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Modified USB 3.0 Raised Single-Layer Connector - C023669
usb connector typesUSB A connectorusb charger typesusb 3.0 female connectorusb a female
  • Product Details
  • Download

Secure connector with UL94-V0 housing. Industrial temperature range (-55 Degree C to 85 Degree C).
