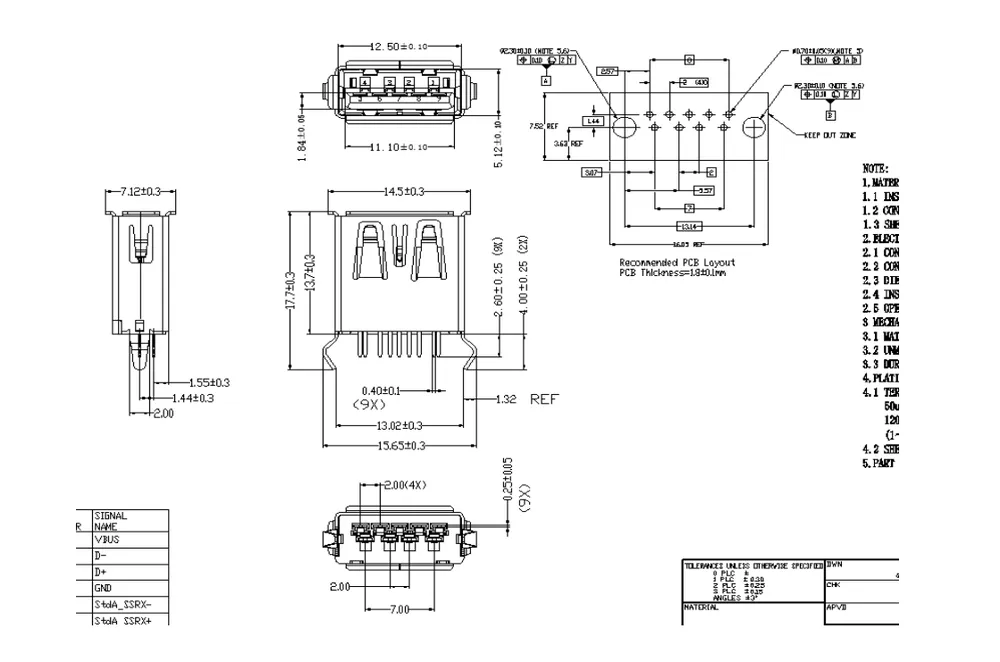

USB 3.0 Single-Layer 180 Degree Low-Profile Connector - L000518
USB 3.0 Single-Layer 180 Degree Low-Profile Connector - L000518

USB 3.0 Single-Layer 180 Degree Low-Profile Connector - L000518

Share
p13.70mm height. Nickel-plated brass shell./p
  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: Copper Alloy, half gold tin plated
  • Casing: Brass, nickel plated
[email protected]
Previous
USB 3.0 Single-Layer 180 Degree Bent-Pin Connector - L000683
usb connector typesUSB A connectorusb charger typesusb 3.0 female connector
  • Product Details
  • Download

Compact 180 Degree connector with 30m ohm contact resistance. Space-efficient PCB design.
