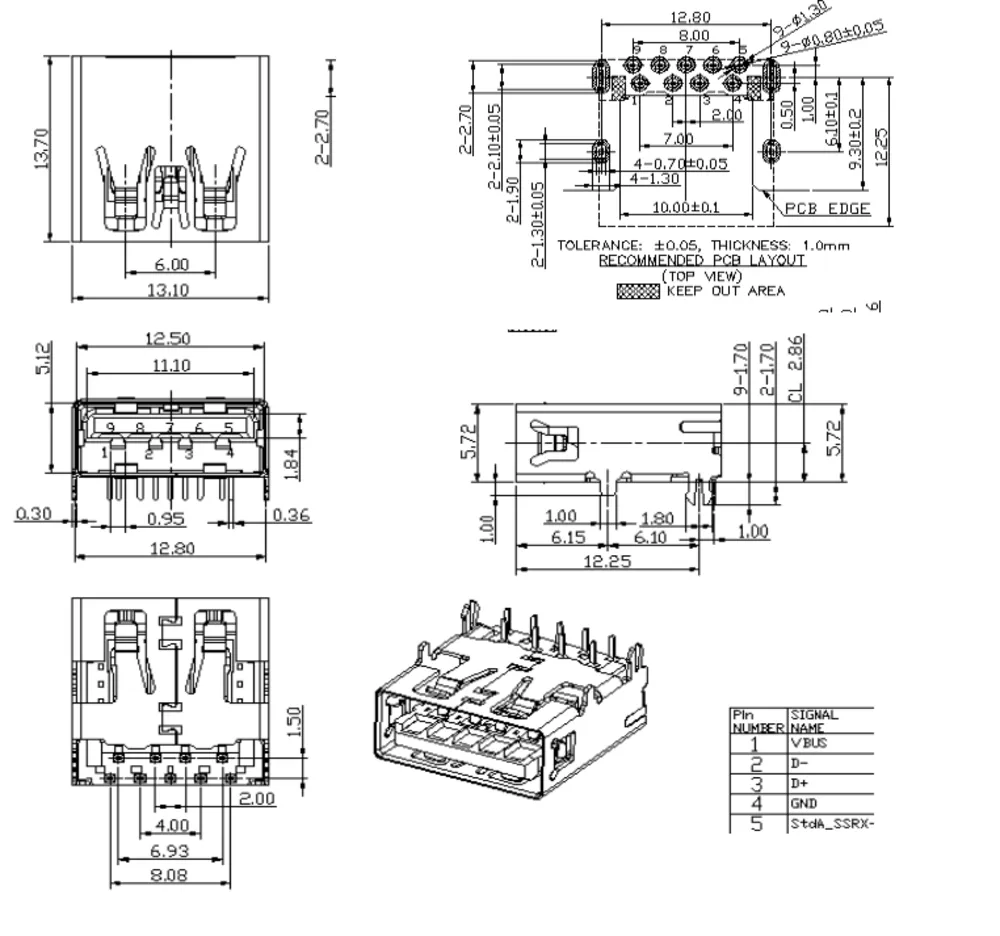

USB 3.0 Single-Layer 90 Degree Connector - L000723
USB 3.0 Single-Layer 90 Degree Connector - L000723

USB 3.0 Single-Layer 90 Degree Connector - L000723

Share

13.70mm height (duplicate). UL94-V0 housing, 30V DC.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: Copper Alloy, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
USB 3.0 Single-Layer 180 Degree Low-Profile Connector - L000518
usb connector typesUSB A connectorusb charger typesusb 3.0 female connectorusb 3 connector types
  • Product Details
  • Download

Reliable connector with copper alloy contacts. Industrial automation use.
