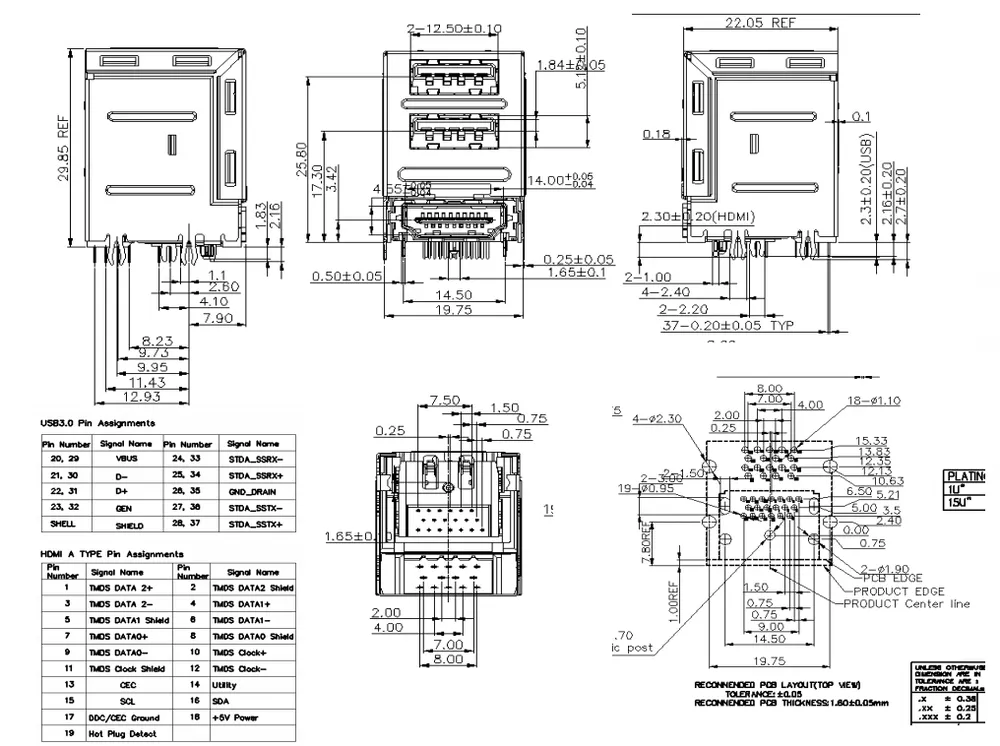

USB 3.1 Double-Layer + HDMI 2.1 Combo Connector - L000797
USB 3.1 Double-Layer + HDMI 2.1 Combo Connector - L000797

USB 3.1 Double-Layer + HDMI 2.1 Combo Connector - L000797

Share

Raised double-layer design. HDMI + USB 3.1 integration.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: Brass, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
USB 3.1 Single-Layer + HDMI 2.1 Combo Connector - L000703
usb connector typesUSB A connectorusb charger typesusb 3 1 type aCombo ConnectorHDMI Connectorfemale usb c port
  • Product Details
  • Download

High-bandwidth combo for 4K video + 10Gbps data. Nickel-plated construction.
