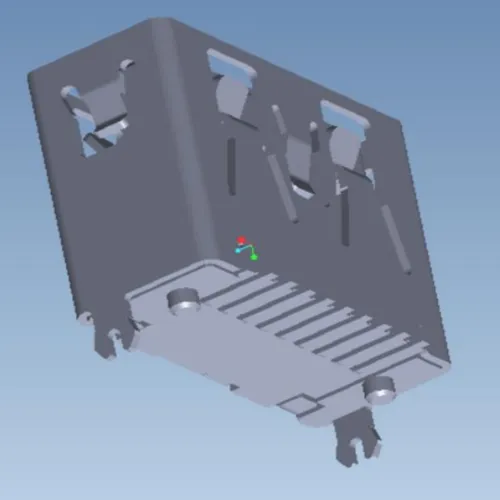

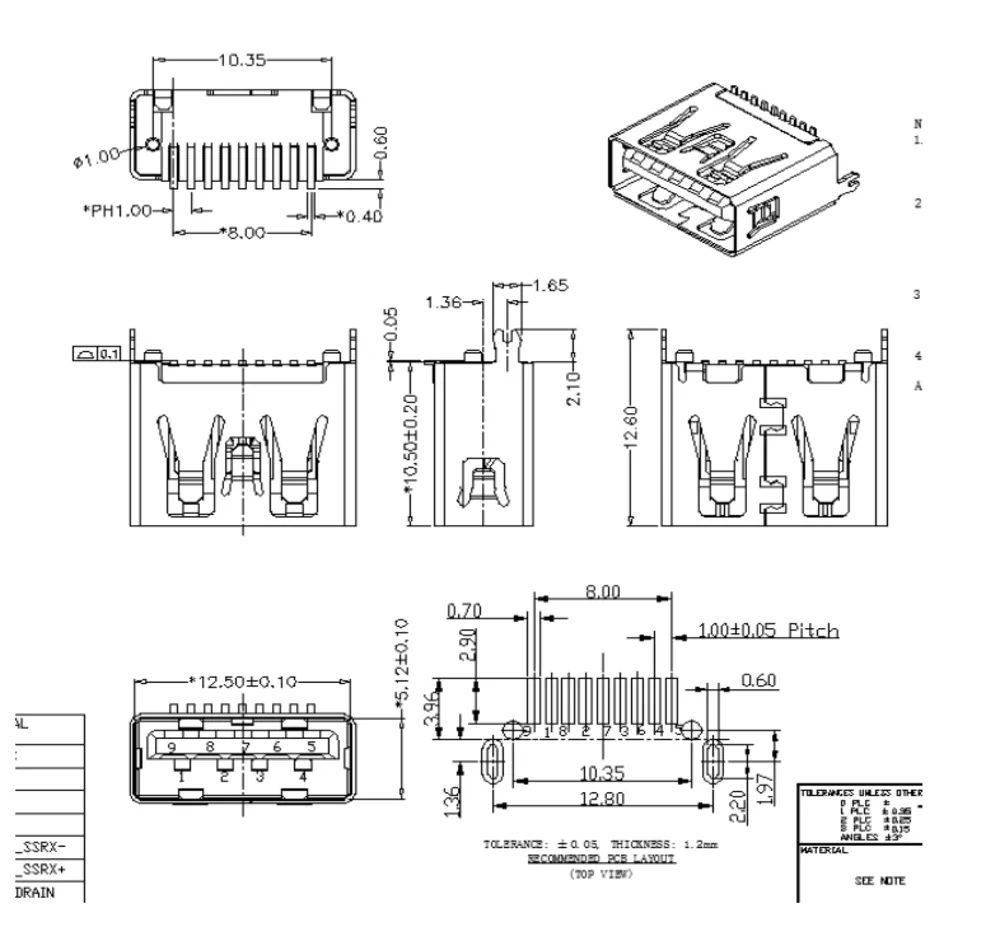

Vertical SMT USB 3.0 Single-Layer 180 Degree Connector - L000668
Vertical SMT USB 3.0 Single-Layer 180 Degree Connector - L000668
Vertical SMT USB 3.0 Single-Layer 180 Degree Connector - L000668

Vertical SMT USB 3.0 Single-Layer 180 Degree Connector - L000668

Share

Vertical SMT, unrolled-edge. SPCC shell, 30V DC.

  • Rated current: 1.8A for 0.25A for other contacts
  • Rated voltage: 30V DC
  • Contact impedance: 30m Ohm
  • Insulation impedance: 100m Ohm
  • Withstand voltage: 100V
  • Operating temperature: -55 Degree C~+85 Degree C
  • Rubber core: high temperature material, UL94-V0
  • Terminal: PHOSPHOR BRONZE, half gold tin plated
  • Casing: SUS, nickel plated
[email protected]
Previous
Full-SMT USB 3.0 Single-Layer Connector - C071375
usb connector typesUSB A connectorusb charger typesusb 3.0 female connectorusb 3 connector types
  • Product Details
  • Download

Space-saving vertical-mount connector. 1.8A power, 100V withstand voltage.

Shenzhen Gaorunxin Technology Co., Ltd

Online message

Shenzhen Gaorunxin Technology Co., Ltd

Related Products

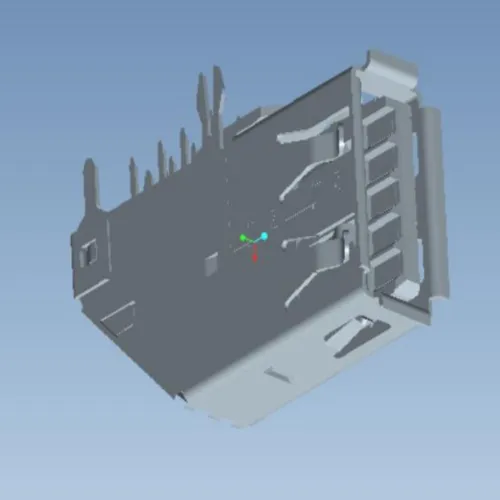

Forward USB 3.0 Side-Mount Forked-Pin Connector - C071329
